    NXS Billet aluminum short Oil Pans.
    Fits 01-08 gsxr 1000.
    01-05 gsxr 750 & 600.
    Requires use of stock drain plug. And stock oil pan screws. Requires cutting existing oil pick up tube approx. 3/8 - 1/2"" from bottom of billet pan. Be sure to reinstall the relief valve from your stock pan. 07-08 GSXR 1000 requires use of pick tube from 2001-2006. 07-08 relief valve will need installed into new billet pan. Pan is 2.50 O.S and 2.25 I.S. depth
    ITEM# NAOP1...$280.


    NXS Billet oil pan swinging pick ups. Fits 01-08 GSXR 1000.
    01-05 GSXR 750-600.
    Designed for dwarf or modlite cars. Aircraft quality aluminum pick up will fit 7/16 from bottom of our NXS billet oil pan. Has a removeable screen just incase it ever needs cleaned or replaced.
    ITEM# NXSPU...$155.
    2007-08 GSXR 1000 stock oil pan gasket. This gasket is reuseable and comes on 07-08 gsxr 1000 motors. It can be used on all 2001-2008 gsxr motors and creates a windage tray affect that keeps the oil down in the pan so it does not splash up as much.
    ITEM# NXSOPG...$23.

    2009-16 GSXR oil pan gasket. ITEM# NXSOPG2...$18.
    2017-22 GSXR oil pan gasket. ITEM# NXSOPG3...$14.
    2011-20 ZX10 oil pan gasket. ITEM# NXSOPG4...$16.

    20017-2022 GSXR 1000.
    Water pump block off kit.
    Replaces stock water pump allowing more clearance in the area for driveline. Less drag on engine power. Comes as shown, with 3 feet of AN12 hose and 2 hose clamps. Water pump can be mounted most any place, but most mount on or near firewall.
    ITEM# NXSWPBO2....$220


    20017-2022 GSXR 1000.
    Water pump block off plug with strap.
    ITEM# NWPCBO18....$35
    2001-2016 GSXR 1000.
    2001-2020 GSXR 750/600
    water pump block off kit.
    Replaces stock water pump allowing more clearance in the area for driveline. Less drag on engine power. Comes as shown. with 3 feet of AN12 hose and 2 hose clamps. Water pump can be mounted most any place, but most mount on or near firewall. Additional AN12 hose or AN fitting maybe needed in your installation.
    ITEM# NXSWPBO....$230



    2001-2016 GSXR 1000.
    2001-2020 GSXR 750/600.
    Water pump block off plug with strap.
    ITEM# NWPCBO....$35
    Fits 2009-16 GSXR 1000.
    Billett Aluminum Oil Pan has 18 degree of angle to match the motor so that when installed in your dwarf car or modlite the bottom of the pan is horizontal and not hanging down to be damaged. Pan uses stock gasket, bolts and drain plug. Requires NXS motorsports pick up tube NOPU2 listed below.
    Photo 2
    Photo 3
    ITEM# NSOP2..$425.

    Fits 2009-16 GSXR 1000.
    Billett Aluminum Oil Pan pick up. Has 18 degree of angle to match the pan. Uses stock bolts.
    ITEM# NOPU2..$65.
    Fits 2017-22 GSXR 1000.
    Billett Aluminum Oil Pan has 12 degree of angle to match the motor so that when installed in your dwarf car or modlite the bottom of the pan is horizontal and not hanging down to be damaged. Pan uses stock gasket, bolts and drain plug. Requires. NXS motorsports pick up tube NOPU3 listed below.
    Photo 2
    Photo 3
    ITEM# NSOP3..$425.
    NXS oil pick up.
    Fits 2017-22 GSXR 1000 motor with NXS shortened oil pan listed above.
    ITEM# NOPU3...$65

    Fits 2017-22 GSXR 1000.
    NXS brand Billett Aluminum water pump cover. This cover is designed to allow more driveshaft adaptor clearance. Water inlet and outlet has been relocated. And not requiring engine to be moved forward like other brand water pump hose clearance issues. Requires 2 NF1040, 1 NF714 amd 1 NF764 fittings.
    ITEM# NWP2..$125.
    Fits 2017-22 GSXR 1000.
    Water Inlet for cylinder head. Use with above 2017-20 water pump cover. water hose to enter from left side for more driveshaft clearance.
    ITEM# NCWI..$38
    Fits 2017-22 GSXR 1000.
    Billett Aluminum thermostat housing. Has AN12 outlet.
    ITEM# NATH3...$65

    Fits 2001-16 GSXR 1000, 750, 600.
    Billett Aluminum thermostat housing. Universal fit has 3/4 NPT outlet to allow any angle 12AN fitting. Has bleeder hole and uses stock bleeder.
    ITEM# NATH2...$45
    Fits 2011-19 ZX10.
    Billett Aluminum Oil Pan with remote cooler and filter kit. Includes pan, hose and all parts needed and listed below.
    Item list:
    1 OF #NAZX10OP
    1 OF #PROTKOC2
    1 OF #NXSEOCA
    1 OF #NROFA
    1 OF #NKNOF
    9 FT OF #NXRP8
    8 OF #NXRP8-C
    2 OF NF103
    4 OF NF847
    2 OF NF081
    2 OF NF082
    3 OF NF712
    1 OF NF702
    ITEM# NAZX10OPK..$1405.
    Fits 2017-22 GSXR 1000.
    NXS brand Billett Aluminum water pump cover kit. Comes as shown complete. NXS Water Pump Cover, Water Inlet, hose, and 2 NF1040, 1 NF714, and 1 NF764. AN12 fittings.

    Pump cover with fittings mounted on motor Photo.
    ITEM# NWP2KIT..$320.

    Fits 2011-19 ZX10.
    Billett Aluminum Oil Pan Comes as shown complete. with swivel pick up. Oil pan machined with less depth on one side. This allows oil pan to fit properly when engine is installed tilted. Pans bottom will be horizontal and not allow one side to hang further down than opposite side. TOP quality.
    Reuse your stock pan gasket, 2 pick tube O-ring, and drain plug. We will supply you with new screws and large O-ring and instructions. For additional pictures click links below.
    ZX10 Photo 1
    ZX10 Photo 2
    ZX10 Photo 3
    ZX10 Photo 4
    ZX10 Photo 5
    ZX10 Photo 6
    ZX10 Photo 7
    ZX10 Photo 8
    Please phone us if you have any questions.
    ITEM# NAZX10OP...$849
    Fits 2011-19 ZX10.
    Billett Aluminum rear engine water outlet block off. Has threaded hole in place of original water hose outlet to internal oil cooler. With this water outlet you can now remove the water line to oil cooler and use threaded hole for water temp probe. Uses stock screws and O-ring. Comes with brass fitting for temp probe
    ITEM# NAWTPO...$65
    Fits 01-08 GSXR 1000.
    GSXR 1000 Aluminum AN8 90 Degree oil line adaptor block. 1/3 greater oil flow.. Has O-ring groove To engine block.
    ITEM# NAOF2..$30.

    Fits 2001-08 GSXR 1000.
    GSXR 1000 Aluminum AN8 straight fitting. To engine block with O-ring groove.
    ITEM# NAOF4...$25
    Fits 01-22 GSXR 1000.
    GSXR 1000 Aluminum AN8 straight fitting. To oil cooler with NO O-ring groove.
    ITEM# NAOF3..$22.
    Fits 09-22 GSXR 1000.
    GSXR 1000 Aluminum AN8 90 Degree oil line fitting. To engine block. With O-ring groove.
    ITEM# NAOF5..$30.

    Fits 09-22 GSXR 1000.
    GSXR 1000 Aluminum AN8 straight fitting. To Engine block with O-ring groove.
    ITEM# NAOF6..$25.
    Fits 2001-22 GSXR 1000.
    GSXR 1000 Aluminum AN8 90 Degree oil line fitting. To oil cooler. NO O-ring groove.
    ITEM# NAOF1...$29.
    2001-2022 GSXR 1000 oil line O-ring.
    Use on engine block and oil cooler adaptors listed above. ITEM# NOR...$2

    GSXR 1000 Aluminum Billet Thermostat Housing plug. Used on NATH1 in place of the NTM2263 to plug existing port hole.
    ITEM# NATH1P...$5
    NXS Water Manifold.
    Water manifold has 2 inlets for water standard size temp gauge and sensors. Has 2 outlets each for 1 inch ID hose connection.
    ITEM# NXSWMH...$60
    Temp probe brass fitting.
    Item#..NTM2263...$9.75.

    GSXR 1000 Aluminum Billet Thermostat Housing. Has AN12 fitting, bleeder hole and threaded port for water temp gauge probe. Shown with temp probe brass fitting is included. Uses stock Thermostat and screws.
    ITEM# NATH1...$88.75.
    01-08 gsxr 1000 water pump covers.
    Cover is one piece billet aluminum. With proper fitting and outlets is redesigned to include the AN12 fitting built into the pumps cover. It is a solid aluminum cover. NOT Welded.
    ITEM# NAWP1...$185

    Water Pump cover O-ring fits 2005-2018 GSXR 1000.
    ITEM#..NWPCG...$4
    NXS 2011-19 ZX10
    AN12 Thermostat housing.
    Has AN12 male threads and connect to original ZX10 outlet using stock screws.
    ITEM# NXSWTH...$65

    NXS 2011-19 ZX10
    AN12 Water pump tube.
    Replaces stock tube, hose and hose clamps. Uses stock O-ring and mounting bolt.
    ITEM# NXSWPT...$50
    NXS External Oil Cooler Adaptor
    Fits ZX10 2011-2019, 2001-2015 GSXR 750 and 600
    Motors with internal oil coolers can now be changed to have External oil coolers. This adaptor plate allows for the switch. Keep your motor running cooler with this adaptor. Has AN8 threaded fittings for inlet and outlet.
    ITEM#.NXSEOCA..$80
    GSXR 1000, 750, 600
    Water Temp Probe fitting screws into block drain plugs under head or other block drain plugs. Your temp probe then screws into this fitting for water temp reading direct from block. Uses your O-ring from stock drain plug.
    ITEM#.NWTPF. ...$24.00

    GSXR 1000 750 600, or ZX10 from 2011-2021, oil pressure fittings.
    These aluminum fittings screw into the oil galley port when the plug is removed. You then can connect an3 braided line to this fitting and to a oil pressure gauge.
    ITEM#.NOPGF2....$24
    GSXR 1000 750 600, or ZX10 from 2011-2021, oil pressure fittings.
    These brass fittings screw into the oil galley port and have a 1/8 NPT female port we screw into with an3 fitting. You then can connect an3 braided line to this fitting and to a oil pressure gauge.
    ITEM#.NOPGF....$23
    NXS Water Manifold.
    Water manifold has 2 inlets for water standard size temp gauge and sensors. Has 2 outlets each with AN12 male threads. Or 2 outlets each with 3/4" push on hose ends.
    ITEM# NXSWM...$65

    NXS Water Manifold.
    Water manifold has 2 inlets for water standard size temp gauge and sensors. Has 2 outlets each for hose connection.
    ITEM# NXSWMH...$60
    Hardware bracket for Spal fan mounting
    Four required for fan installation.
    ITEM# NFANBT...$2.50
    11 inch Spal fan.
    ITEM# NRAD11F..$84

    Afco Aluminum double pass 2 row radiator mod lite or dwarf car. Size is 21 inches wide by 12 inches tall. Has top 3/4 NPT threads and bottom 3/4 NPT threaded outlets.
    ITEM# NARAD21 ..$370
    With Spal fan mounted
    ITEM# NARAD21F...$515
    Afco Aluminum double pass 2 row radiator mod lite or dwarf car. Size is 17 inches wide by 12 inches tall. Has top 3/4 NPT threads and bottom 3/4 NPT threaded outlets.
    ITEM# NARAD17 ..$370
    With Spal fan mounted
    ITEM# NARAD17F...$515

    Radiator Cap.
    Item# NRADCAP...$20

    Remote oil filter adaptor.
    Item# NROFA...$17
    Fragola brand black.
    AN Female-straight. Barbed.
    Item# NF704 12an-3/4".$16.75
    Item# NF702 8an-1/2".$7.75
    Fragola brand black.
    AN Female-30 deg. Barbed.
    Item# NF734 12an-3/4".$30.75
    Item# NF732 8an-1/2".$28.75

    Fragola brand black.
    AN Female-45 deg. Barbed
    Item# NF709 12an-3/4".$30.75
    Item# NF707 8an-1/2".$22.75
    Fragola brand black.
    AN Female-60 deg. Barbed.
    Item# NF764 12an-3/4".$33.75
    Item# NF762 8an-1/2".$28.75
    Fragola brand black.
    AN Female-90 deg. Barbed
    Item# NF714 12an-3/4".$33.75
    Item# NF712 8an-1/2"..$22.95

    Fragola brand black.
    AN Female-120 deg. Barbed.
    Item# NF754 12an-3/4".$26.75
    Item# NF752 8an-1/2".$30.75
    Fragola brand black.
    AN Female-150 deg. Barbed
    Item# NF121.12an-3/4".$33.75
    Item# NF081..8an-1/2".$29.75
    Fragola brand black.
    AN Female-180 deg. Barbed
    Item# NF012.12an-3/4".$31.75
    Item# NF008..8an-1/2".$28.75

    Fragola brand black.
    Male AN to Male NPT.
    Item# NF1011..12an-3/4".$12.75
    Item# NF847...8an-1/2".$8.75
    Fragola brand black.
    AN Male to 90 deg. NPT.
    Item# NF1040..12an-3/4".$22.75
    Item# NF1851...8an-1/2".$19.75
    16 Row Oil Cooler.
    Measures 5-1/2 x 11 x 1-1/2 inches and is plate and fin type. Has 1/2 in NPT Female Inlet and 1/2 in NPT Female Outlet. Is black aluminum.
    Requires two 1/2 NPT to AN8 fittings.
    ITEM# PROTKOC2..$130

    Oil cooler with fan mounted for easy insatllation.
    ITEM# NCO2...$219.
    FRAM oil filter for GSXR motors. ITEM# NFOF...$10.
    KN filter for use with remote oil filter adaptor on ZX10 motors ITEM# NKNOF...$16

    2001-2008 GSXR 1000 Billet oil pans will require a pick up tube that can be cut and shortened to your pans depth. These are from 2002-2006 gsxr motors. 2007-2008 motors will require replacement of their stock metal pick up to these style pick ups. You will need to cut these approx 3/8" to 1/2" from the bottom of the billet oil pan
    ITEM# NXSOPUT...$30.
    GSXR 1000 750 600 Stock oil pans..All years from 2001 up to 2008 are available. All sizes of CCs. Several in stock. Shown is a 2005 gsxr 1000 oil pan.
    ITEM# NXSOP...$65 & UP.
    Heavy Duty NHRA approved oil pressure line. Uses #8AN push on fittings with clip style clamps for added security. ITEM# NXRP8...$8/ft.

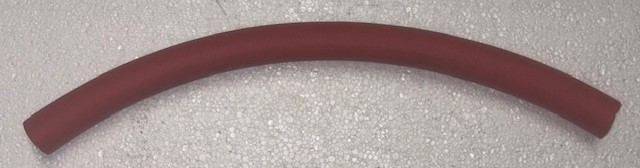

    #12AN Push on Hose for radiator line connections.
    ITEM# NSOH12...$9.00/ft.
    #8AN Push on Hose Appox 7FT required for oil cooler connections.
    ITEM# NS0H8...$4.75/ft.
    Heavy Duty NHRA approved oil pressure line clamps. ITEM# NXRP8-C...$2.

    #8AN to 3/4 O-ring NPT
    Used on ZX10 oil pan inlet and outlet.
    ITEM# NF103...$12.75/ft.
